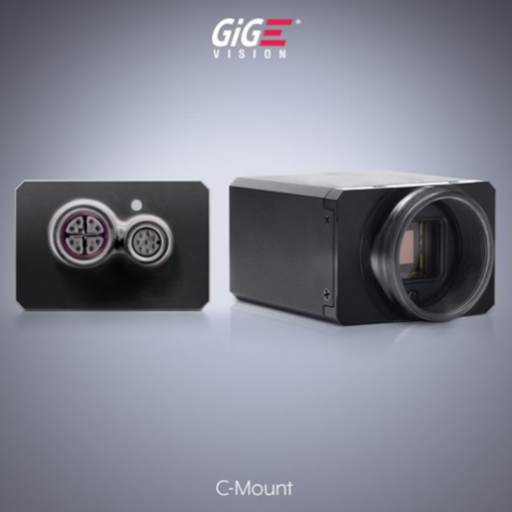

Features of the EVS, Event Vision Sensor, Camera Triton2

EVS cameras provide event-based data. Event-based pixels continuously sample incident light instead of capturing frames, generating a signal only when light intensity changes.
Event vision sensors constantly monitor photocurrent in response to illuminance changes, responding with an on or off signal when illuminance exceeds a predetermined threshold. Therefore, they have no shutters.

Time resolution equivalent to 10,000 fps or higher, dynamic range 120dB
Low-light performance (0.08 lux)
Shock-resistant, vibration-resistant, high operating temperature guarantee, EMI compliant
Lightweight, compact, IP67 (dustproof, waterproof) compliant
SONY CMOS Sensor Used: IMX636 (0.9MP, 1280x720px), IMX637 (0.3MP, 640x512px)

Lineup

*You can swipe left and right on the table below.

Model Name	Pixel Count	Resolution	Frame Rate	Sensor (CMOS)	Sensor Size	Shutter	Monochrome/Color	Lens Mount
TRT009S-EC	0.9MP	1280 x 720	N/A	Sony \| Prophesee IMX637	1/2.5"	Shutterless	Monochrome	C
TRT003S-EC	0.3MP	640 x 512	N/A	Sony \| Prophesee IMX637	1/4.5"	Shutterless	Monochrome	C
