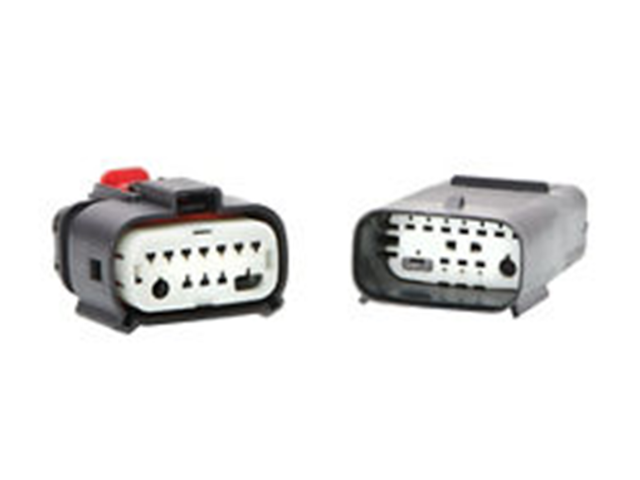

High-speed data connections typically require separate Connectors for data, power, and signals. The MX-DaSH Connectors integrates these into a single unit, reducing overall electrical system costs.
The advancement of automotive zonal architecture increases the importance of connection solutions that support multiple functions while offering space-saving installation. MX-DaSH is designed to meet these demands.
It also features a locking mechanism for stable connections. The wire-to-board type offers a flexible design, accommodating various form factors through module replacement.
※下の表は左右にスワイプすることができます

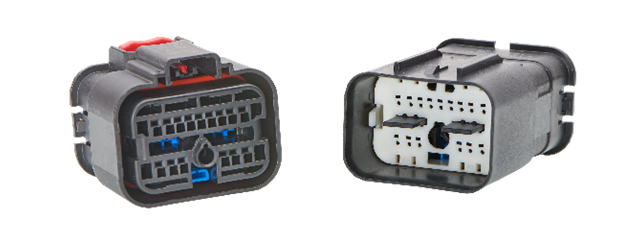

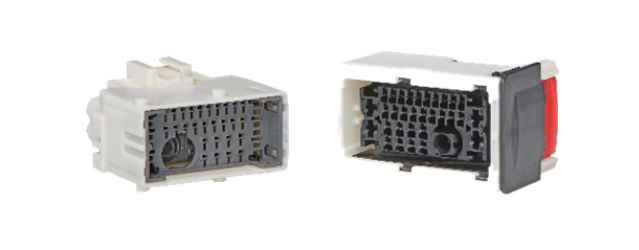

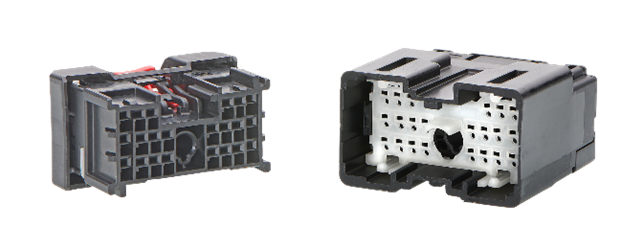

| Waterproof 15+1-Way Connectors | Non-Waterproof 22+1-Way Connectors | Non-Waterproof 31+1-Way Connectors | |
|---|---|---|---|
| Images |  |
 |
 |
| Configuration | Wire-to-Wire Connectorsー | Wire-to-Wire Connectors | Wire-to-Wire Connectors |
| Terminal Size | 1.20mm (power and ground circuits) + HFM <1 Gbps |
1.20mm (power and ground circuits) + HFM <1 Gbps | 1.20mm/2.80mm (power and ground circuits) + HFM <1 Gbps |
| Poles | 15 x 1.20mm 1 x HFM |
22 x 1.20mm、1 x HFM | 19 x 1.20mm (0.75㎟) 8 x 1.20mm (1.50㎟) 4 x 2.80mm 1 x HFM |
| Test Specification | GMW3191 T2/V1/S3 USCAR2 rev8 USCAR17 rev5 USCAR49 |
USCAR2 rev8 USCAR17 rev5 USCAR49 |
B217050 revE (Peugeot) IEC 62153-4-3:2013 (E) IEC 6215-4-7:2015 |
