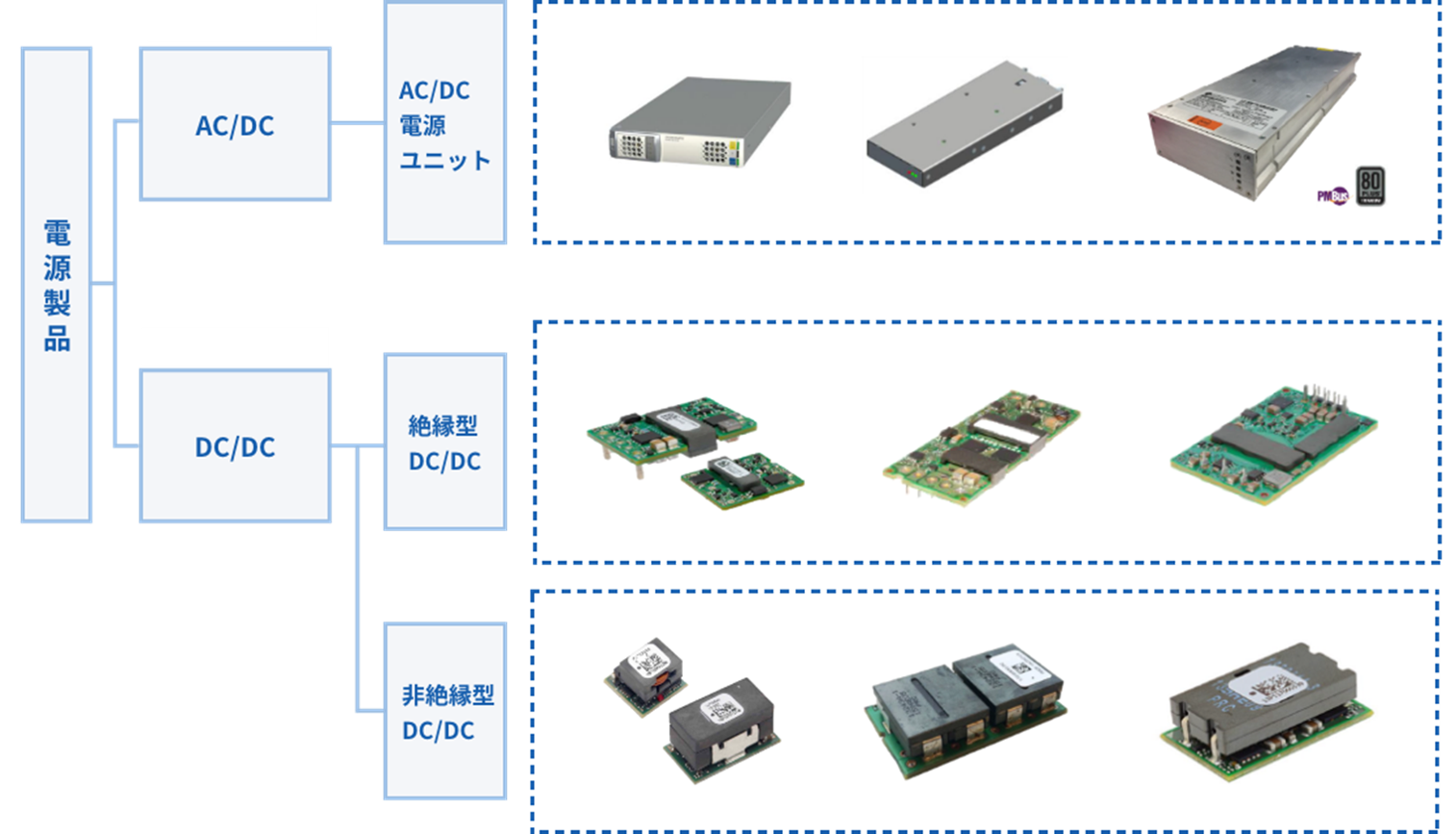

OmniOn Power's Power Products
Products Offered
CP Series
- AC to 48V output up to 3500W
- DC48V input option
- AC & DC rear input
- Height 1U x Width 100mm
- Shelf available
- Dual-I2C & RS-485 interface
- PoE compliant option
CAR Series
- AC to 12/24/48V output up to 3000W
- DC48V input option
- AC front input, DC rear input
- Height 1U x Width 100mm
- Shelf available
- PMBus interface
SLP Series
- AC to 12/54V output up to 750W
- DC 48V input option
- AC front input, DC rear input
- Height 1U x Width 1U
- PMBus interface
CCR Serie
- AC to 12V output up to 500W
- Height 1/2U x Width 3.35” x Depth 8.8”
- Fanless
- PMBus interface
- Conduction cooling support
- Chassis/slot preparation

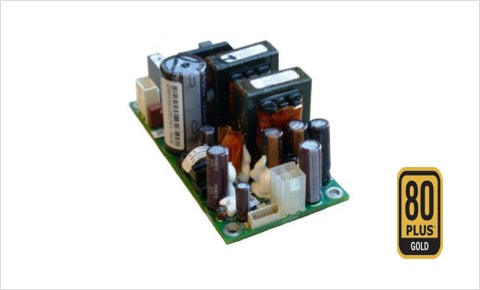

CLP Series
90 to 264V AC input; 12V/24/28Vdc, 150-450W output
Applications
- Communication equipment/base stations/testers/broadcasting/industrial machinery
Main Specifications and Features
- 150-450W; 90-264VAC input, 12V/24V/28VDC output
- High efficiency: 80 PLUS Gold (92%)
- Variable output voltage: +/-5%
- Compact: 50.8 x 101.6 x 36.1 mm [2 x 4 x 1.4 in.]
- Standby power (CLP0212 option & CLP0424)
- Remote On/Off (CLP0212 option & CLP0424)
- Redundant/parallel operation (CLP0212 option & CLP0424)
- Conduction-cooling support
- EMI Class B
- IEC61000-4-5, Level 3 to 4; Surge Immunity (1kV/2kV to 2kV/4kV)
- Wide operating temperature range: -40 - 85ºC Overcurrent/overvoltage/overheat protection
- Safety standards: CSA, UL, VDE, CCC Seismic resistance: IPC-9592B
Options
- Standby power supply: 5V@0.25A (CLP0212)
- Case cover
EP Series
- AC to 48V output (up to 1600W)
- AC & DC rear input
- Height 1U x Width 4.6”, Depth 8.1”
- Shelf ready
- RS-485 interface
GP100 Power Supply Products for Large Industrial Equipment
380V AC or 480VAC 3-phase input; 48V dc output, 6000W
Applications
- High-density computing, industrial equipment, etc.
Specifications
- Industry-leading power density and efficiency: 30W/in3 (power density) and 97% (efficiency)
- 380/480V ac 3-phase direct input
- Wide output range: DC Output 42V DC to 58V DC
- 445.2 x 202.5 x 40.8 mm [17.53 x 7.98 x 1.6 in.]
- Safety standards: CSA, UL, VDE
Features
- Wide operating temperature range: -20 to 75ºC
- Standby power: 5V
- PMBus compliant I2C (Dual) or RS485 Communications
- Hot plug, hot swap
- Battery control compatible
New Features
- Remote/field firmware upgrade
- Enhanced self-diagnostic function for operating status
- Improved monitoring accuracy
- Single Slot Backplane Available

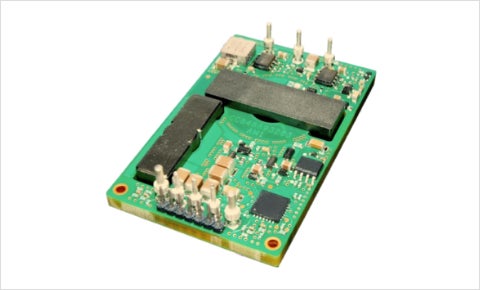

Isolated DC-DC Converter
High Power
- High Efficiency 97%
- PMBus (D parts)
- 1000W ¼ Brick; 300w ⅛ Brick
- High Reliability IPC9592
- Excellent Temperature Characteristics
- EMC Reference Design
- Parallel (Droop) Option
Low Power
- ⅛ Brick to 120w
- 3.3/5.0/12/15Vout
- EMC reference design
*You can swipe left and right on the table below.
| Size |
Part Number |
Input (V) |
Output (V) |
Output (A) |
Output (W) |
Efficiency |
| 1/4 Brick |
QBVE094A0S |
45-56 |
10.7 |
94 |
1000 |
97% |
| 1/4 |
QBD(V)E067A0B |
40-60 |
9.5-12.0 |
67 |
800 |
96% |
| 1/4 |
QSD(V)W050A0B |
36-75 |
9.6-13.2 |
50 |
600 |
96% |
| 1/4 |
QSD(V)W042A0B |
36-75 |
5.0-13.2 |
42 |
500 |
96% |
| 1/4 |
QSD(V)W035A0B |
36-75 |
5.0-13.2 |
35 |
420 |
96% |
| 1/8 Brick |
EBD(V)W025A0B |
36-75 |
5.0-13.2 |
25 |
300 |
95% |
| 1/8 |
EBD(V)W020A0B |
36-75 |
5.0-13.2 |
20 |
240 |
95% |
| 1/8 |
ESTW |
36-75 |
3.3/5.0/12 |
10-36 |
120 |
92% |
| 1/8 |
ESTW |
36-75 |
3.3/5.0/12/15 |
4.2-25 |
50-83 |
92% |
| 1/16 Brick |
KBVW006A0B |
36-75 |
12 |
6 |
72 |
91% |
| 1/16 |
KSTW |
36-75 |
3.3/5.0/12 |
4.2-15 |
50 |
91% |
| 1/16 |
KSTW |
36-75 |
3.3/5.0/12 |
2.5-10 |
30 |
90% |
| 1x1 inch |
SSTW |
36-75 |
3.3/5.0/12 |
1.3-5.0 |
15 |
88% |

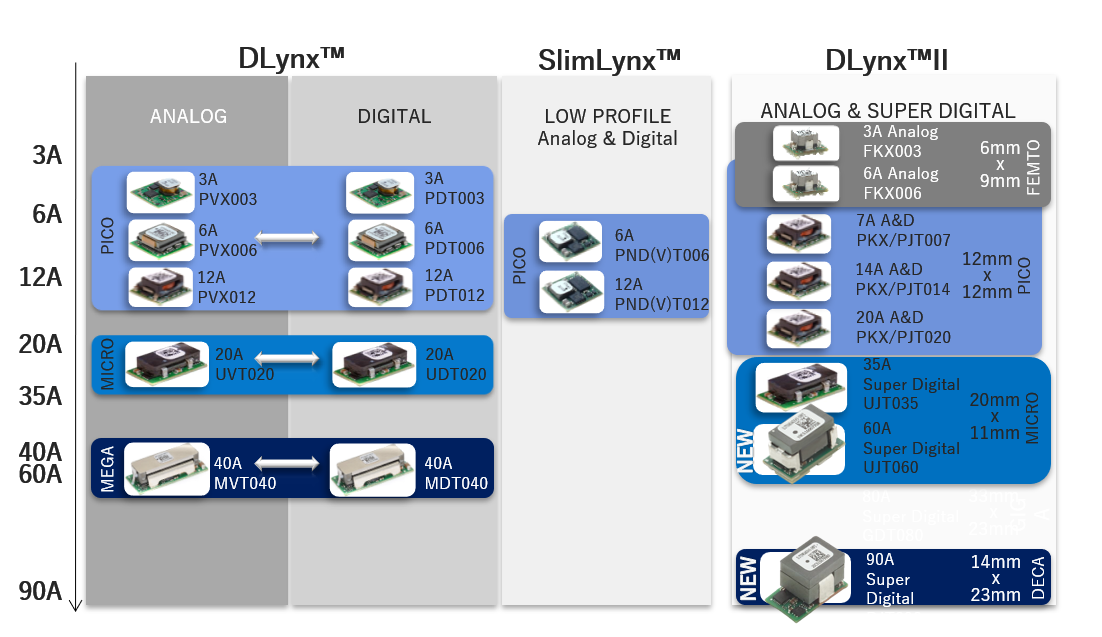

Non-isolated DC-DC converter (POL)
