Techpoint Features
HD-TVI Analog Signal Decoding
- A single video decoder IC can decode HD-TVI (HD, FHD or higher), CVBS (NTSC, PAL).
Supports various resolutions and frame rates
- 1080p60/30/25, 720p60/50/30/25 (4M, 8M also possible)
Reduces camera system costs
- Contributes to system streamlining and cost reduction through ISP + HD-TVI Tx 1-chip products.。
Proven track record in the automotive market
- Adopted by domestic Tier 1 suppliers.
HD-TVIシステム概要

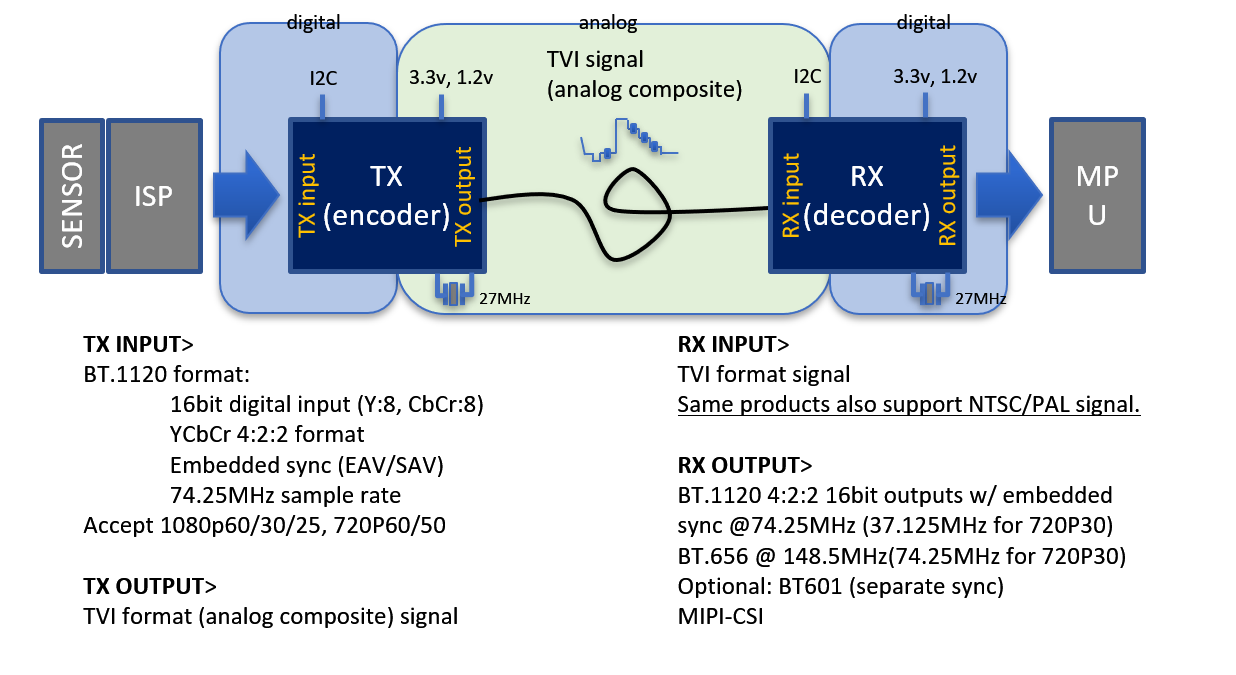

HD TVI(Transport Video Interface)solution
Products
HD-TVI Automotive Receiver Chipsets
- TP2824: Automotive-grade, 4-channel 1080p/720p/NTSC compatible receiver IC (BT.656, BT.1120 output)
- TP2825: Automotive-grade, 1-channel 1080p/720p/NTSC compatible receiver IC (BT.656, BT.1120 output)
- TP2855: Automotive-grade, 4-channel 1080p/720p/NTSC compatible receiver IC (MIPI CSI-2 output)
- TP2850: Automotive-grade, 1-channel 1080p/720p/NTSC-compatible receiver IC (MIPI CSI-2 output)
HD-TVI Automotive Transmitter Chipsets
- TP2912G: Automotive-grade, 1080P/720P compatible transmitter IC (BT.656, BT.1120 input)
- TP2915: Automotive-grade, 1080P/720P compatible transmitter IC (BT.656, BT.1120, RGB444 input)
- TP3810: Automotive-grade, 1080P/720P compatible ISP-integrated transmitter IC (supports HDR function)
- TP3820: Automotive-grade, 1080P/720P compatible ISP-integrated transmitter IC (supports HDR function, fisheye correction function)

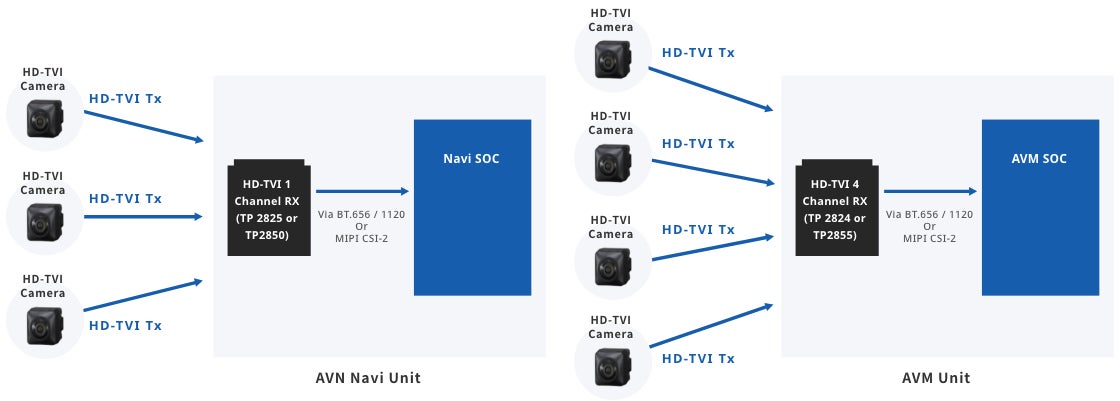

Image of installation in an automotive camera system
Each TD-TVI Rx product supports 4 to 5 camera inputs.
TP2855/TP2824, etc., incorporate four HD-TVI decoders, enabling simultaneous decoding of NTSC and HD-TVI signals.
*TP2825B 5ch input TP2850B 4ch input
