The Ladybug6 is an industry-leading high-resolution camera designed to capture 360-degree spherical images from an all-weather mobile platform. Its industrial-grade design and factory-calibrated presets deliver exceptional spatial accuracy of +/-2 mm at 10 meters while generating 72-megapixel (MP) images with pixel values.
| Interface | USB 3.1 Gen 1 interface with screw lock for camera control and data |
|---|---|
| GPIO | 12-pin GPIO connector for external trigger input, strobe output, and camera power |
| Optical Components | Six high-quality f/2.5 lenses with 4.4 mm focal length |
| Spherical Distance | Calibrated from 2m to infinity |
| Focal Length | Approx. 200 cm. Subjects from approx. 60 cm to infinity maintain acceptable sharpness |
| ADC | 12-bit |
| Image Data Format | Uncompressed Raw 8, Raw 12, and JPEG |
| Image Data Output | 8-bit, 12-bit, or 16-bit, Raw or JPEG compressed |
| Gain Range | Auto/Manual/One-Push mode for 8-bit format, Manual mode for 12-bit format, 0~18 dB |
| Gamma | 0.50~4.00 |
| Trigger Mode | Standard, Bulb, Skip Frame, Overlap, Multi-shot |
| Wide Dynamic Range | Cycle 4 gain and exposure presets |
| Exposure Range | Global shutter, Auto/Manual/One-push/Extended shutter mode 0.02 ms to 2 s (Extended shutter) |
| Image Processing | Shutter, gain, white balance, gamma, JPEG compression are software programmable Case Type Single unit, waterproof |
| Case Type | Single unit, waterproof |
| Case Material | Machined aluminum housing, anodized red or black |
| Environmental Sensors | Thermometer, barometer, hygrometer, accelerometer, compass |
| Dimensions (WxHxD) | Diameter 197 mm, Height 160 mm (with lens hood attached) |
| Weight | 5.2 kg |
| Power Supply | 12~24 V via GPIO, 13 W (External power supply required) |
| Temperature | -30~60˚C (Storage), -20~50˚C (Operating) |
| Warranty | 2 years |
| ACC-02-0001 | Ladybug6 Desktop and Tripod Mount |  |
| ACC-01-2308 | USB3 Cable, 1 m, Type A Male - M12 Male |  |
| ACC-01-2309 | USB3 Cable, 3 m, Type A Male - M12 Male | |
| ACC-01-2310 | USB3 Cable, 5 m, Type A Male - M12 Male | |
| ACC-01-6001 | 1-Port USB3 Cable Extension Hub with Screw Lockき |  |
| ACC-01-3012 | GPIO Cable with DC Barrel Jack |  |
| ACC-01-9001 | 24 V 2.5 A Power Supply |  |

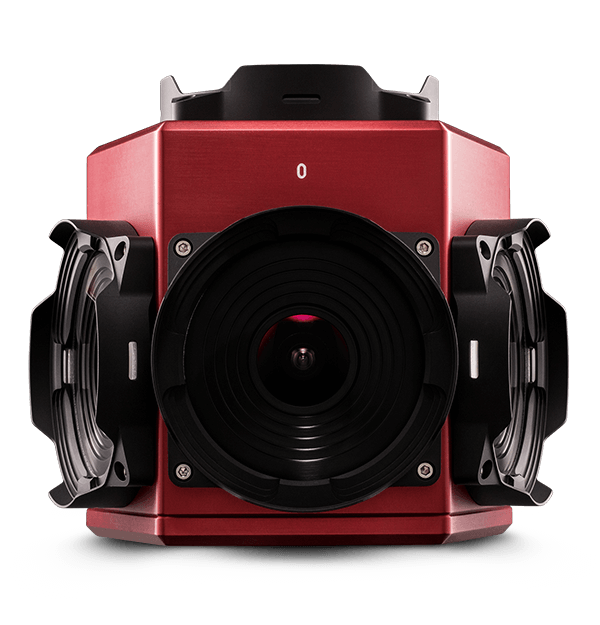

Ladybug5+ delivers the highest quality in spherical 360° imaging and precision. Capture impressive 8k30 or 4k60 content. Ladybug5+ achieves 2 mm/10 m accuracy thanks to its patented calibration and superior global shutter sensor. The Ladybug SDK enables rapid acquisition, recording, and export of omnidirectional content. With an IP65 rating, Ladybug5+ is ideal for outdoor use, such as street mapping.
| Camera Resolution | 30MP |
|---|---|
| Waterproof | IP65 |
| Interface | USB3 |
| Frame Rate(FPS) | 30 |
| Size (H x D, mm) | 160 x 197 |
| Weight (kg) | 3.0 |
| Power (W) | 13 |
| Operating Range | -20 to 50˚C |
| Spatial Accuracy | +/- 2 mm @ 10 m |
Sample files are available for download on the FLIR website below.
https://www.flir.jp/support-center/iis/machine-vision/downloads/ladybug-spherical-cameras-sample-files-download/
For other product inquiries or quotation requests, please contact us via our form.
