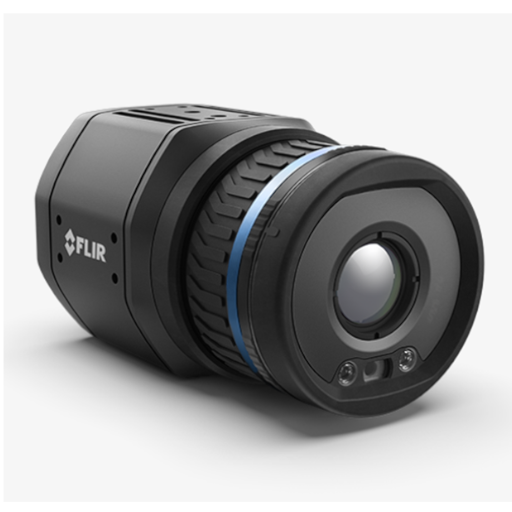

Fixed Thermal Camera

FLIR Axxx Thermography Smart Sensor
Camera Model: A400 + Smart Sensor (Advanced Model)

Thermal cameras provide automation solution providers with the functionality needed to build complex monitoring systems, trigger alarms, and achieve analysis objectives. Smart sensors offer multiple measurement tools and alarm functions, while also performing edge computing. Analysis occurs at the camera level, enabling immediate result verification. The A400-A500-A700 cameras deliver exceptional functionality and flexibility with multiple field-of-view options, motorized focus control, and unprecedented connectivity. This monitoring system is easy to configure, allowing adaptation to your specific needs for product quality, productivity, maintenance, and safety.

Applications

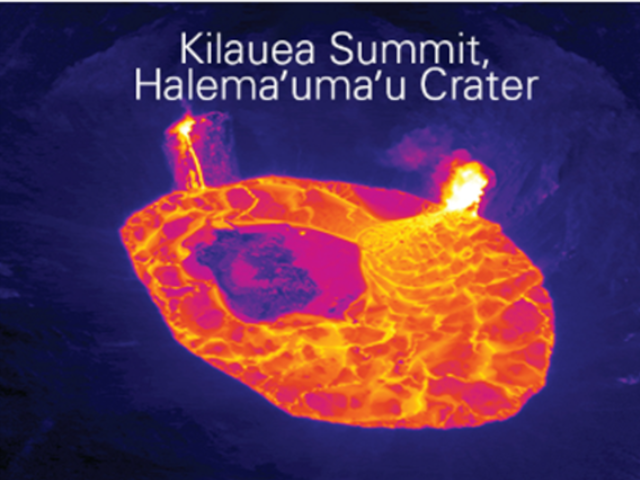

Monitoring thermal trends in various locations

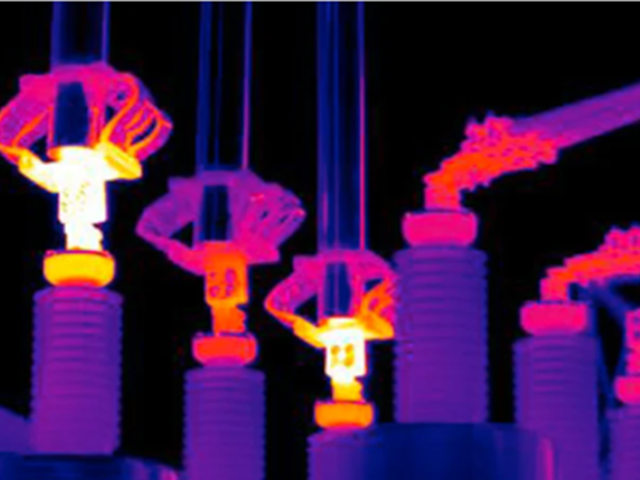

Thoroughly monitoring electrical systems

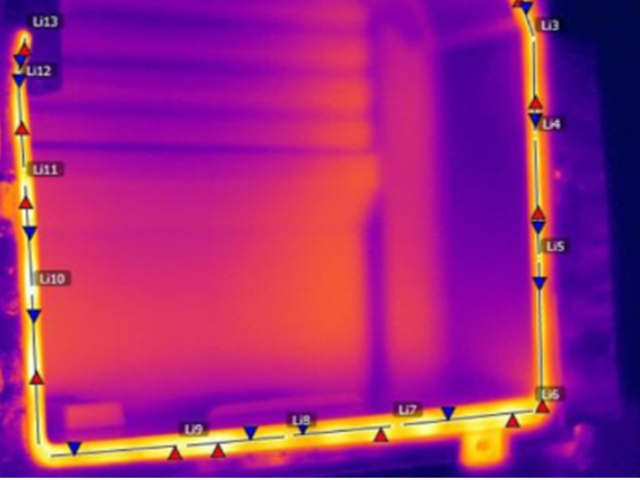

Avoiding errors in manufacturing processes

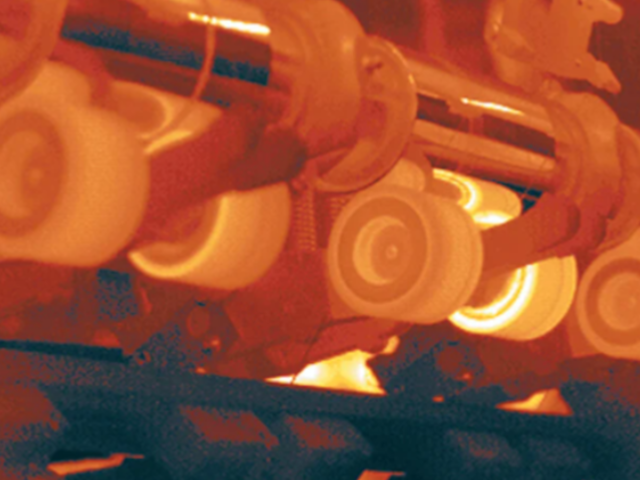

Monitoring the wear and tear of machinery

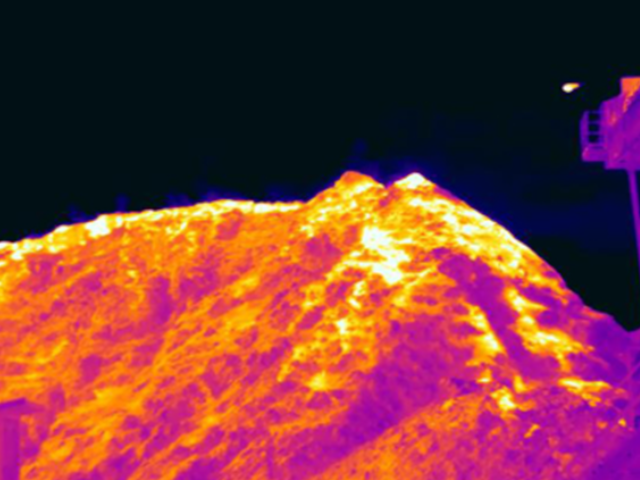

Detecting signs of fire before overheating occurs

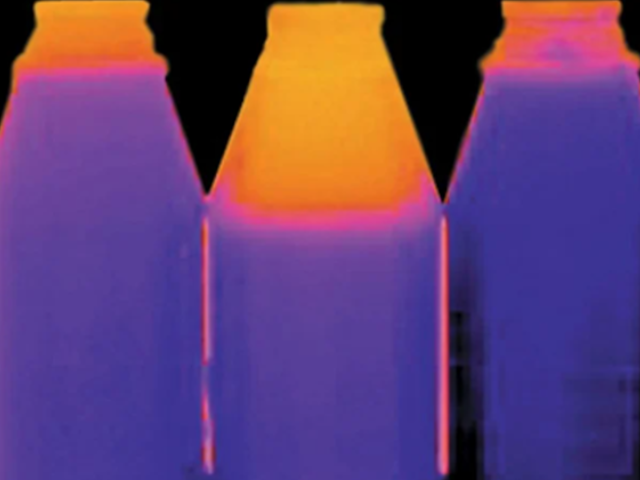

Verifying consistent production quality

Product Specifications

FLIR A700 Thermography Smart Sensor

※下の表は左右にスワイプすることができます

Image and Optical Data	Standard Specifications	Advanced Specifications

Measurement
Thermal Image Resolution	320x240 (A400), 464x348 (A500), or 640x480 (A700)
Visible Resolution*	1280x960
Temperature Resolution	<0.03°C to <0.05°C, lens dependent
Lens	2x Macro, DFOV (24°/14°), 6°, 14°, 24°, 42°
IR Camera Focus	One-Shot Contrast, Motorized, Manual
Measurable Temperature	-20°C to 120°C 0°C to 650°C A400／A500：300°C to 1500°C A700：300°C to 2000°C
Accuracy	±2 & deg;C or ±2% of reading
Measurement Analysis
Standard Functions	10-spot meter, 10-box, 3 delta, 1 isotherm, 1 isocoverage, 1 reference temperature	10 Spot Meter, 10 Boxes and Mask Polygon, 3 Delta, 2 Isotherm, 2 Isocoverage, 1 Reference Temperature, 2 Line, 1 Polylines
Auto Hot/Cold Detection	Displays maximum/minimum temperature values and positions within boxes
Periodic Response	sftp (images), SMTP (images and/or measurement data/results)
Measurement Frequency	Up to 10Hz
Measurement Result Readout	Yes, via common protocols like EtherNet/IP, Modbus TCP, MQTT, REST API
Alarms
Alarm Functionality	For each measurement function, digital input, internal camera temperature
Alarm Output	Yes: via common outputs like email, EtherNet/IP, Modbus TCP, RESTful API (advanced use only)
Video Storage, RTSP Protocol
Unicast	Available
Multicast	Available
Multiple Image Transfer	Available
Source	Visible, IR, Super Fine Contrast (MSX™)
Contrast Optimization	FSX, Histogram Equalization (IR only)
Overlay	Available, Not Available
Pixel Format	YUV411
Encoding	H.264/MPEG4/MJPEG
Image and Optical Data
Source	Visible
Overlay	None
Pixel Format	YUV411
Encoding	H.264/MPEG4/MJPEG
Radiometric Transfer
Source	-	IR
Pixel Format	-	MONO 16
Encoding	-	Compressed JPEG-LS, FLIR Radiometric

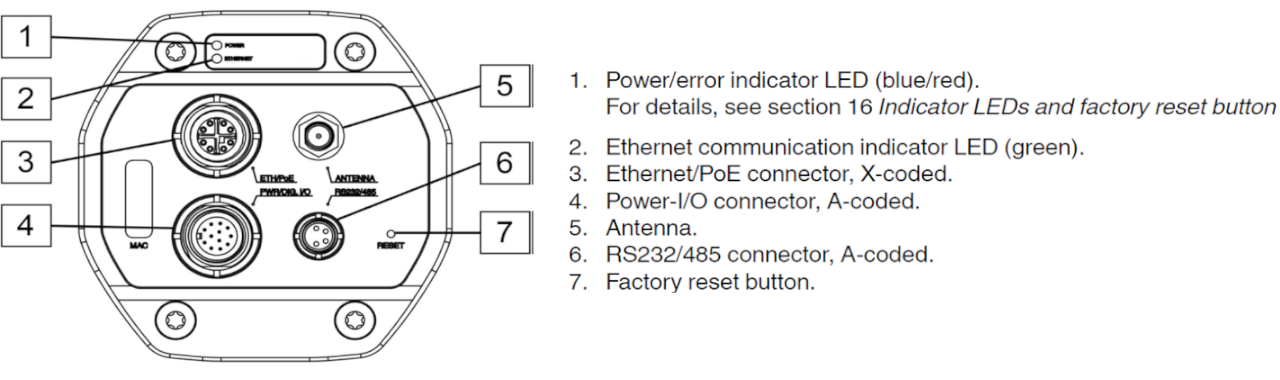

Ethernet
Interface	Wired, Wi-Fi*
Connector Type	M12 8-pin X-cord (female), RP-SMA (female)
Ethernet Type and Standard	1000Mbps, IEEE 802.3
Ethernet Power	Power over Ethernet, PoE IEEE 802.3af Class 3
Ethernet Protocol	Includes EtherNet/IP, Modbus TCP, MQTT
Digital Input/Output
Connector Type	M12 Male 12-pin A-cable (shared with external power)
Digital Input	2x optically isolated, Vin (Low) = 0 to 1.5V, Vin (High) = 3 to 25V
Digital Output	3x optically isolated, 0–48VDC, max 350mA (reduced to 200mA at 60°C) Semiconductor optical relay, 1x dedicated fault output (NC)
Power System
Connector Type	M12 male 12-pin A-cable (shared with digital I/O)
Power Consumption	Typ. 7.5W at 24V DC, Typ. 7.8W at 48V DC, Typ. 8.1W at 48V PoE
Wi-Fi*
Connector Type	Female RP-SMA

Lineup

※下の表は左右にスワイプすることができます

Product Specifications							Imaging and Lenses
Model Code	Model	Ethernet Interface	Camera Frequency	Temperature Resolution_NETD	Accuracy	Alarm Function	Spectral Range	Detector Spacing	Infrared Resolution	Infrared Video Recording with Temperature Data	Available Lenses

A700	Smart Sensor (Advanced Model)	Wired, Wi-Fi (Optional Feature)	30Hz	Varies by lens	±2°C or ±2% of reading at ambient 15°C to 35°C, target temperature ≥0°C	For selected measurement functions, digital inputs, and camera internal temperature	7.5 to 14µm	12 µm	Uncooled Macrobolometer 640 x 480	RTSP Protocol	6°, 24°, 14°, 42°, 2.0x Micro, Dual FOV (14° + 24°) Non-thermal Lens, 80°
A700	Smart Sensor (Standard Model)	Wired, Wi-Fi (Optional Feature)	30Hz	Varies by lens	±2°C or ±2% of reading at ambient 15°C to 35°C, target temperature ≥0°C	For selected measurement functions, digital inputs, and camera internal temperature	7.5 to 14µm	12 µm	Uncooled Microbolometer 640 x 480	-	6°, 24°, 14°, 42°, 2.0x Micro, Dual FOV (14° + 24°) Non-thermal Lens, 80°
A500	Smart Sensor (Advanced Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<30 mK at 30°C for 42°, <40 mK at 30°C for 24°, <50 mK at 30°C for 14°	±2°C or ±2% of reading at ambient 15°C to 35°C, target temperature ≥0°C	-	7.5 to 14µm	17µm	Uncooled macrobolometer 464 x 348	RTSP Protocol	6°, 24°, 14°, 42°, 2.0x Micro, Dual FOV (14° + 24°) Non-thermal Lens, 80°
A500	Smart Sensor (Standard Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<30 mK at 30°C for 42°, <40 mK at 30°C for 24°, <50 mK at 30°C for 14°	±2°C or ±2% of reading at ambient 15°C to 35°C, target temperature ≥0°C	-	7.5 to 14µm	17µm	Uncooled macrobolometer 464 x 348	RTSP or GVSP (GigE Vision) protocol	6°, 24°, 14°, 42°, 2.0x Micro, Dual FOV (14° + 24°) Non-thermal Lens, 80°
A400	Smart Sensor (Advanced Model)	Wired, Wi-Fi (Optional Feature)	30Hz	Varies by lens	±2°C or ±2% of reading at ambient 15°C to 35°C, target temperature ≥0°C	Each selected measurement function, digital input, internal camera temperature	7.5 to 14µm	17µm	Uncooled Macrobolometer 320 x 240	RTSP Protocol	6°, 24°, 14°, 42°, 2.0x Micro, Dual FOV (14° + 24°) Non-thermal Lens, 80°
A400	Smart Sensor (Standard Model)	Wired, Wi-Fi (Optional Feature)	30Hz	Varies by lens	±2°C or ±2% of reading at ambient 15°C to 35°C, target temperature ≥0°C	Each selected measurement function, digital input, internal camera temperature	7.5 to 14µm	17µm	Uncooled Macrobolometer 320 x 240	-	6°, 24°, 14°, 42°, 2.0x Micro, Dual FOV (14° + 24°) Non-thermal Lens, 80°
A700	Image Transfer Only (Advanced Model)	Wired, Wi-Fi (Optional Feature)	30Hz	Varies by lens	±2°C or ±2% of reading at ambient 15°C to 35°C, target temperature ≥0°C	-	7.5 to 14µm	12 µm	Uncooled Microbolometer 640 x 480	RTSP or GVSP (GigE Vision) protocol	6°, 24°, 14°, 42°, 2.0x macro, dual FOV (14° + 24°) non-thermal lens, 80°
A700	Image Transfer Only (Standard Model)	Wired, Wi-Fi (Optional Feature)	30Hz	Varies by lens	±2°C or ±2% of reading at ambient 15°C to 35°C, target temperature ≥0°C	-	7.5 to 14µm	12 µm	Uncooled Microbolometer 640 x 480	RTSP or GVSP (GigE Vision) protocol	6°, 24°, 14°, 42°, 2.0x macro, dual FOV (14° + 24°) non-thermal lens, 80°
A500	Image Transfer Only (Advanced Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<30 mK at 30°C for 42°, <40 mK at 30°C for 24°, <50 mK at 30°C for 14°	±2°C or ±2% of reading at ambient 15°C to 35°C, target temperature ≥0°C	-	7.5 to 14µm	17µm	Uncooled Microbolometer 464 x 348	RTSP or GVSP (GigE Vision) protocol	6°, 24°, 14°, 42°, 2.0x macro, dual FOV (14° + 24°) non-thermal lens, 80°
A500	Image Transfer Only (Standard Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<30 mK at 30°C for 42°, <40 mK at 30°C for 24°, <50 mK at 30°C for 14°	±2°C or ±2% of reading at ambient 15°C to 35°C, target temperature ≥0°C	-	7.5 to 14µm	17µm	Uncooled Microbolometer 464 x 348	RTSP or GVSP (GigE Vision) protocol	6°, 24°, 14°, 42°, 2.0x macro, dual FOV (14° + 24°) non-thermal lens, 80°
A400	Image Transfer Only (Advanced Model)	Wired, Wi-Fi (Optional Feature)	30Hz	Varies by lens	±2°C or ±2% of reading at ambient 15°C to 35°C, target temperature ≥0°C	-	7.5 to 14µm	17µm	Uncooled microbolometer 320 x 240	RTSP or GVSP (GigE Vision) protocol	6°, 24°, 14°, 42°, 2.0x macro, dual FOV (14° + 24°) non-thermal lens, 80°
A400	Image Transfer Only (Standard Model)	Wired, Wi-Fi (Optional Feature)	30Hz	Varies by lens	±2°C or ±2% of reading at ambient 15°C to 35°C, target temperature ≥0°C	-	7.5 to 14µm	17µm	Uncooled microbolometer 320 x 240	RTSP or GVSP (GigE Vision) protocol	6°, 24°, 14°, 42°, 2.0x macro, dual FOV (14° + 24°) non-thermal lens, 80°
A70 29°	Smart Sensor (Advanced Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	±2°C or ±2% error (relative to reading) at ambient temperatures 15°C to 35°C and target temperatures 0°C or above	-	7.5 to 14µm	12 µm	Uncooled Microbolometer 640 x 480	GigE Vision and RTSP	-
A70 29°	Smart Sensor (Standard Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	±2°C or ±2% error (relative to reading) at ambient temperatures 15°C to 35°C and target temperatures 0°C or above	-	7.5 to 14µm	12 µm	Uncooled Microbolometer 640 x 480	GigE Vision	-
A70 51°	Smart Sensor (Advanced Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	±2°C or ±2% error (relative to reading) at ambient temperatures 15°C to 35°C and target temperatures 0°C or above	-	7.5 to 14µm	12 µm	Uncooled Microbolometer 640 x 480	GigE Vision and RTSP	-
A70 51°	Smart Sensor (Standard Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	At ambient temperatures 15°C to 35°C and target temperatures 0°C or above: ±2°C or ±2% error (relative to reading)	-	7.5 to 14µm	12 µm	Uncooled Microbolometer 640 x 480	GigE Vision	-
A70 95°	Smart Sensor (Advanced Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	±2°C or ±2% error (relative to reading) at ambient temperatures 15°C to 35°C and target temperatures 0°C or above	-	7.5 to 14µm	12 µm	Uncooled Microbolometer 640 x 480	GigE Vision and RTSP	-
A70 95°	Smart Sensor (Standard Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	At ambient temperatures 15°C to 35°C and target temperatures 0°C or above, ±2°C or ±2% error (relative to reading)	-	7.5 to 14µm	12 µm	Uncooled Microbolometer 640 x 480	GigE Vision	-
A70 29°	Image Transfer Only (Advanced Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	±2°C or ±2% error (relative to reading) at ambient temperatures 15°C to 35°C and target temperatures 0°C or above	-	7.5 to 14µm	12 µm	Uncooled Microbolometer 640 x 480	GigE Vision and RTSP	-
A70 29°	Image Transfer Only (Standard Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	±2°C or ±2% error (relative to reading) at ambient temperatures 15°C to 35°C and target temperatures 0°C or above	-	7.5 to 14µm	12 µm	Uncooled Microbolometer 640 x 480	GigE Vision	-
A70 51°	Image Transfer Only (Advanced Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	±2°C or ±2% error (relative to reading) at ambient temperatures 15°C to 35°C and target temperatures 0°C or above	-	7.5 to 14µm	12 µm	Uncooled Microbolometer 640 x 480	GigE Vision and RTSP	-
A70 51°	Image Transfer Only (Standard Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	At ambient temperatures 15°C to 35°C and target temperatures 0°C or above: ±2°C or ±2% error (relative to reading)	-	7.5 to 14µm	12 µm	Uncooled Microbolometer 640 x 480	GigE Vision	-
A70 95°	Image Transfer Only (Advanced Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	±2°C or ±2% error (relative to reading) at ambient temperatures 15°C to 35°C and target temperatures 0°C or above	-	7.5 to 14µm	12 µm	Uncooled Microbolometer 640 x 480	GigE Vision and RTSP	-
A70 95°	Image Transfer Only (Standard Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	At ambient temperatures 15°C to 35°C and target temperatures 0°C or above, ±2°C or ±2% error (relative to reading)	-	7.5 to 14µm	12 µm	Uncooled Microbolometer 640 x 480	GigE Vision	-
A50 29°	Smart Sensor (Advanced Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	±2°C or ±2% error at ambient temperature 15°C to 35°C and target temperature 0°C or above (relative to read value)	10 Spot meter 10 Boxes and masks polygon (total count) 3 Delta (difference between arbitrary value/reference/external lock) 2 Isotherms (top/bottom/interval) 2 Equal coverage 1 Reference temperature 2 Line 1 Polylines	7.5 to 14µm	17µm	Uncooled Microbolometer 464 x 348	RTSP Protocol	-
A50 29°	Smart Sensor (Standard Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	At ambient temperatures 15°C to 35°C and target temperatures 0°C or above, ±2°C or ±2% error (relative to reading)	10 Spot Meter 10 Boxes 3 Delta (Difference between arbitrary value/reference/external lock) 1 Isotherm (Up/Down/Interval) 1 Equal Coverage 1 Reference Temperature	7.5 to 14µm	17µm	Uncooled Microbolometer 464 x 348	-	-
A50 51°	Smart Sensor (Advanced Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	At ambient temperatures 15°C to 35°C and target object temperatures 0°C or above, ±2°C or ±2% error (relative to reading)	-	7.5 to 14µm	17µm	Uncooled Microbolometer 464 x 348	GigE Vision and RTSP	-
A50 51°	Smart Sensor (Standard Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	Ambient temperature 15°C to 35°C and target object temperature 0°C or above: ±2°C or ±2% error (relative to reading)	-	7.5 to 14µm	17µm	Uncooled Microbolometer 464 x 348	GigE Vision	-
A50 95°	Smart Sensor (Advanced Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	At ambient temperatures of 15°C to 35°C and target temperatures of 0°C or above, ±2°C or ±2% error (relative to reading)	-	7.5 to 14µm	17µm	Uncooled Microbolometer 464 x 348	GigE Vision and RTSP	-
A50 95°	Smart Sensor (Standard Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	At ambient temperatures 15°C to 35°C and target temperatures 0°C or above: ±2°C or ±2°C error (relative to reading)	-	7.5 to 14µm	17µm	Uncooled Microbolometer 464 x 348	GigE Vision	-
A50 29°	Image Transfer Only (Advanced Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	Ambient temperature 15°C to 35°C and target object temperature 0°C or above: ±2°C or ±2°C error (relative to reading)	-	7.5 to 14µm	17µm	Uncooled Microbolometer 464 x 348	GigE Vision and RTSP	-
A50 29°	Image Transfer Only (Standard Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	Ambient temperature 15°C to 35°C and target object temperature 0°C or above: ±2°C or ±2°C error (relative to reading)	-	7.5 to 14µm	17µm	Uncooled Microbolometer 464 x 348	GigE Vision	-
A50 51°	Image Transfer Only (Advanced Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	At ambient temperatures 15°C to 35°C and target object temperatures 0°C or above, ±2°C or ±2% error (relative to reading)	-	7.5 to 14µm	17µm	Uncooled Microbolometer 464 x 348	GigE Vision and RTSP	-
A50 51°	Image Transfer Only (Standard Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	Ambient temperature 15°C to 35°C and target object temperature 0°C or above: ±2°C or ±2% error (relative to reading)	-	7.5 to 14µm	17µm	Uncooled Microbolometer 464 x 348	GigE Vision	-
A50 95°	Image Transfer Only (Advanced Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	周囲温度 15°C to 35°C および計測対象物温度 0°C以上において±2°Cまたは±2°C誤差 (読み値に対して)	-	7.5 to 14µm	17µm	Uncooled Microbolometer 464 x 348	GigE Vision and RTSP	-
A50 95°	Image Transfer Only (Standard Model)	Wired, Wi-Fi (Optional Feature)	30Hz	<35 mK	At ambient temperatures 15°C to 35°C and target temperatures 0°C or above, ±2°C or ±2°C error (relative to reading)	-	7.5 to 14µm	17µm	Uncooled Microbolometer 464 x 348	GigE Vision	-
A615 15°	-	RJ-45, Gigabit Ethernet	50 Hz (window processing at 100/200 Hz)	< 0.05°C @ +30°C/ 50 mK	±2°C or ±2%	-	7.5 to 14 µm	17µm	Uncooled Microbolometer 640 x 480	-	-
A615 25°	-	RJ-45, Gigabit Ethernet	50 Hz (window processing at 100/200 Hz)	< 0.05°C @ +30°C/ 50 mK	±2°C or ±2%	-	7.5 to 14 µm	17µm	Uncooled Microbolometer 640 x 480	-	-
A615 45°	-	RJ-45, Gigabit Ethernet	50 Hz (window processing at 100/200 Hz)	< 0.05°C @ +30°C/ 50 mK	±2°C or ±2%	-	7.5 to 14 µm	17µm	Uncooled Microbolometer 640 x 480	-	-
A615 7°	-	RJ-45, Gigabit Ethernet	50 Hz (window processing at 100/200 Hz)	< 0.05°C @ +30°C/ 50 mK	±2°C or ±2%	-	7.5 to 14 µm	17µm	Uncooled Microbolometer 640 x 480	-	-
A615 80°	-	RJ-45, Gigabit Ethernet	50 Hz (window processing at 100/200 Hz)	< 0.05°C @ +30°C/ 50 mK	±2°C or ±2%	-	7.5 to 14 µm	17µm	Uncooled Microbolometer 640 x 480	-	-
A65 25°	-	IEEE 802.3 / RJ-45	30Hz	< 0.05°C @ +30°C/ 50 mK	±5°C or ±5% of reading	-	7.5 to 13 µm	17µm	Uncooled microbolometer 640 x 512	-	-
A65 45°	-	IEEE 802.3 / RJ-45	30Hz	< 0.05°C @ +30°C/ 50 mK	±5°C or ±5% of reading	-	7.5 to 13 µm	17µm	Uncooled microbolometer 640 x 512	-	-
A65 90°	-	IEEE 802.3 / RJ-45	30Hz	< 0.05°C @ +30°C/ 50 mK	±5°C or ±5% of reading	-	7.5 to 13 µm	17µm	Uncooled microbolometer 640 x 512	-	-
AX8	-	IEEE 802.3	9Hz	< 0.10°C @ +30°C / 100 mK	±2°C or ±2%（+ 10 to + 100°C@ + 10 to + 35 amb）	Automatic alarm for selected measurement functions. Up to 5 alarms configurable.	7.5 to 13 µm	17µm	Uncooled microbolometer 80 x 60	-	-
