Valens Product Features
1. For professional AV equipment, industrial and medical devices

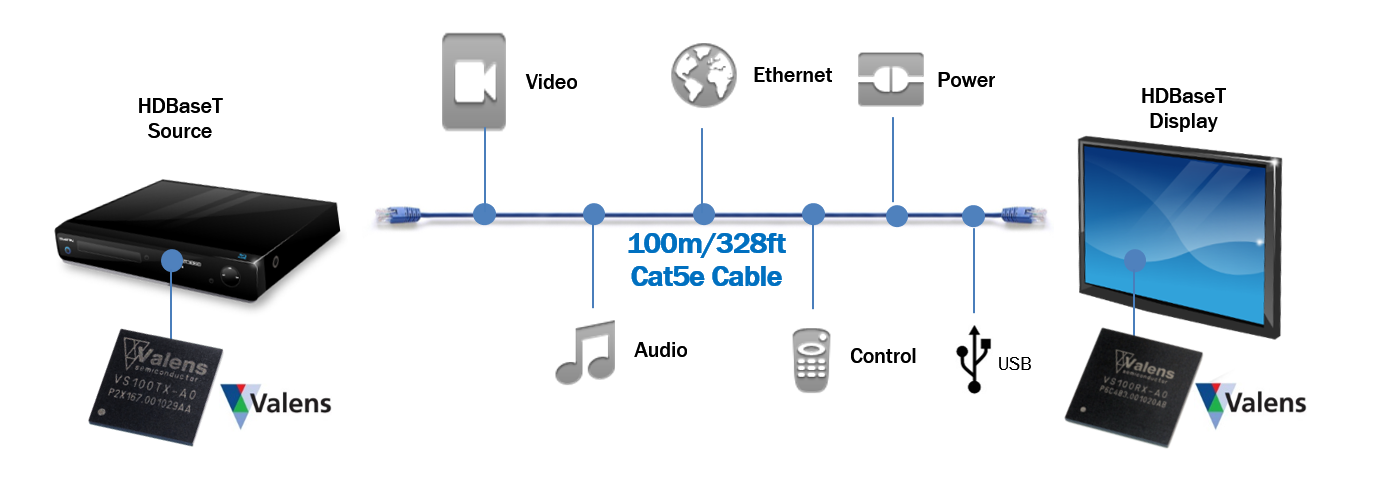

Bundles 4K video/audio, Ethernet, power, USB, and control interfaces for uncompressed, zero-latency transmission up to 100m
Applications
<Pro-AV Equipment>
- Projectors
- Displays
- AV Matrix Switchers
- AV Receivers
- HDMI Extenders
<Industrial & Medical Equipment>
- Industrial PCs
- Surveillance Cameras up to 4K
- Medical Cameras
- Endoscopes
- MRI
- Imaging Diagnostic Equipment
<Automotive>
- Viewing Cameras
- Sensing Cameras
- Telematics
- Infotainment

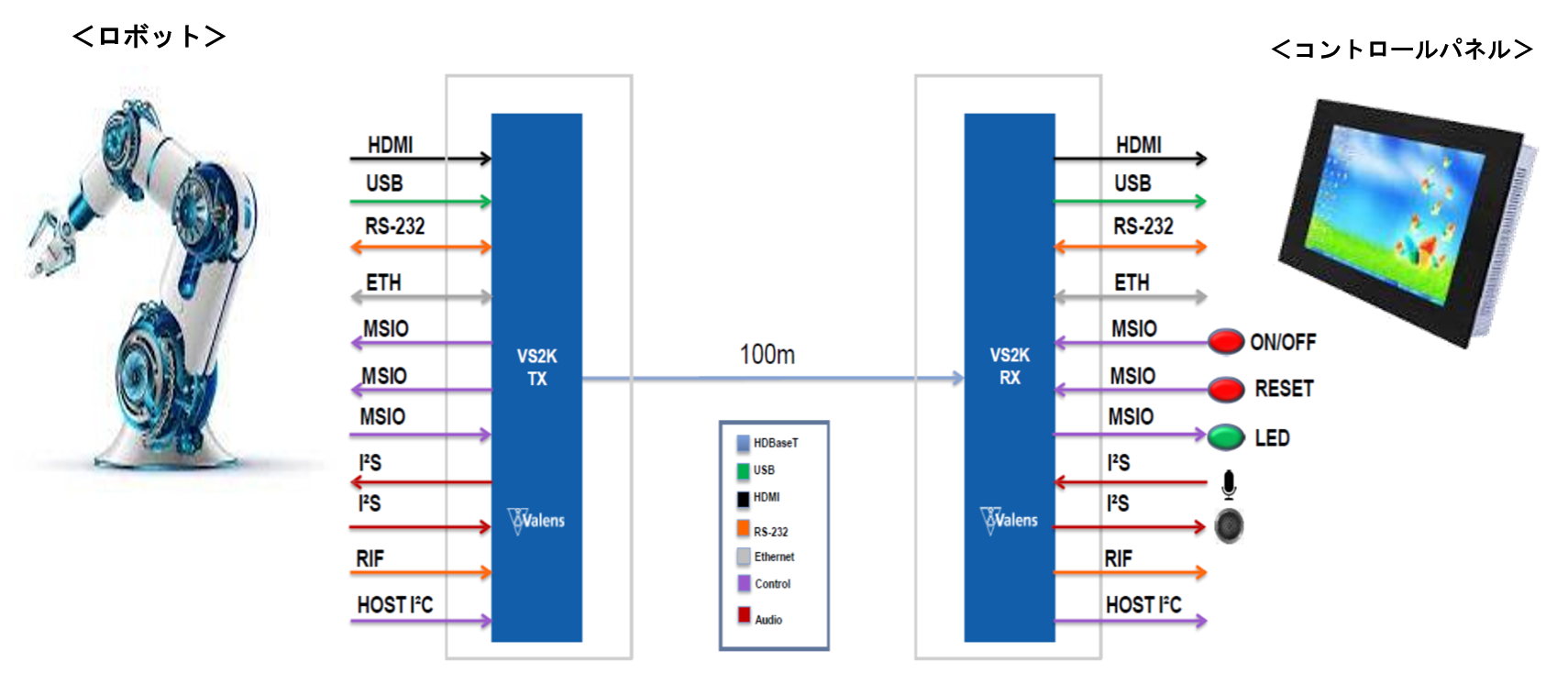

Proposals for Industrial Systems

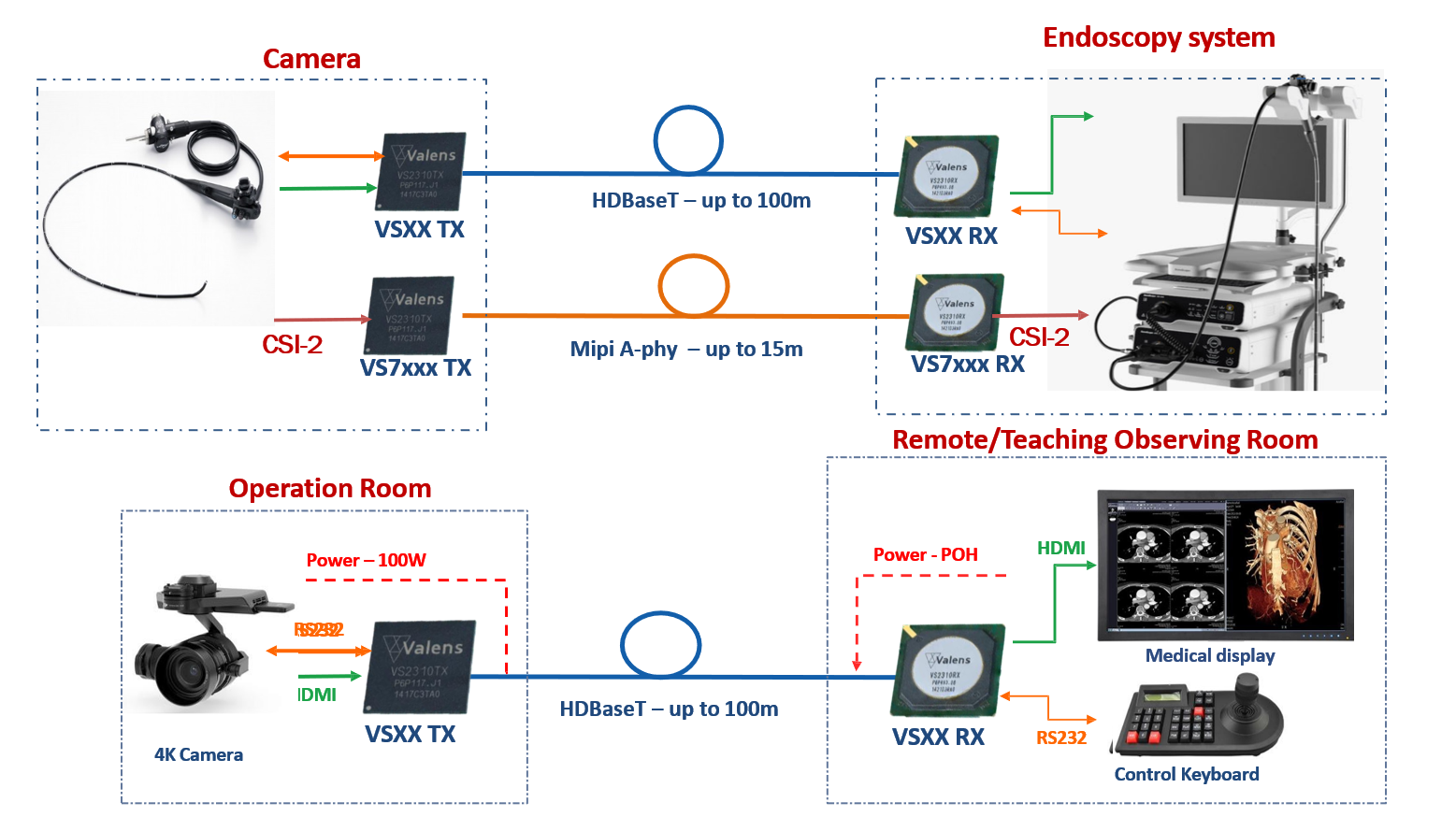

Proposals for Medical Equipment
Main Products
VS100 Series (First Generation Products)
VS100TX (Transmitter Chip) / VS100RX (Receiver Chip)
Bundles Video/Audio/Ethernet/USB/POE/Control signals for 8Gbps transmission over LAN cable up to 100m
VS010TX/RX
Bundles Video/Audio/POE/Control signals for 8Gbps transmission over LAN cable up to 70m
VS2000 Series (Second Generation Products)
VS2000TX/RX
- Video/Audio/Ethernet/POE/Control信号
- Bandwidth: 8Gbps
- Transmission Distance: 100m
VS2110TX/RX
- Video/Audio/POE/Control/USB2.0 signals
- Bandwidth: 8Gbps
- Transmission Distance: 30m
VS2310TX/RX
- Video/Audio/Ethernet/POE/Control/USB2.0 signals
- Bandwidth: 8Gbps
- Transmission Distance: 100m
VS210TX/RX
- Video/Audio/POE/Control/USB2.0 signals
- Bandwidth: 8Gbps
- Transmission Distance: 70m
VS3000 Series (3rd Generation Products)
VS3000 (Transmit/Receive Common Chip)
- 4k/60f Video, I2S, Ethernet, USB, POE, Control signals
- Bandwidth: 16Gbps
- Transmission Distance: 100m
VS300 (Common transmit/receive chip)
- 4k/60f Video, I2S, USB, POE, Control signal
- Bandwidth: 16Gbps
- Transmission Distance: 70m (4k/30f), 40m (4k/60f)
VS3100 (Common transmit/receive chip)
- 4k/60f Video, I2S, Ethernet, POE, Control signals
- Bandwidth: 16Gbps
- Transmission Distance: 100m

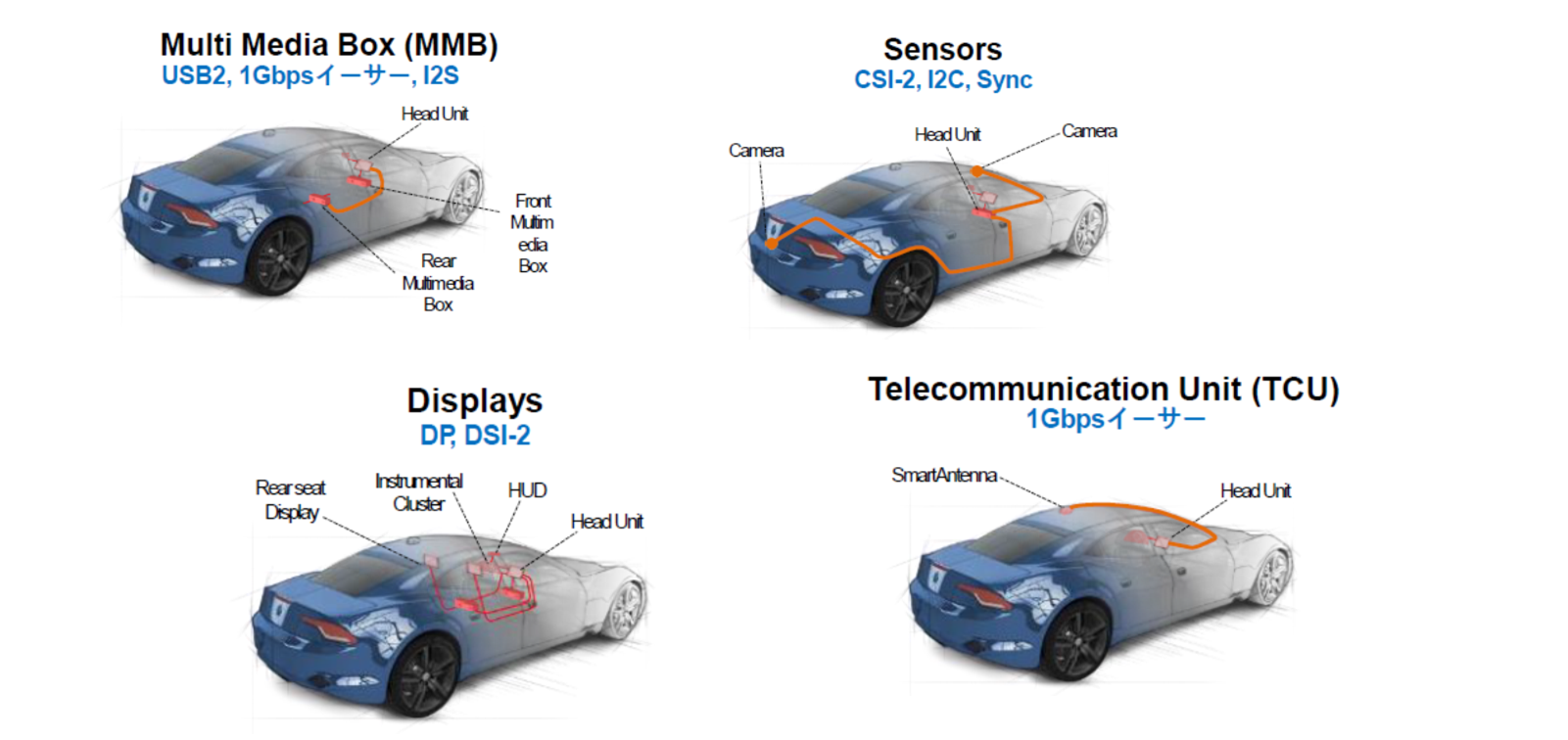

2. Automotive Applications
Automotive Applications

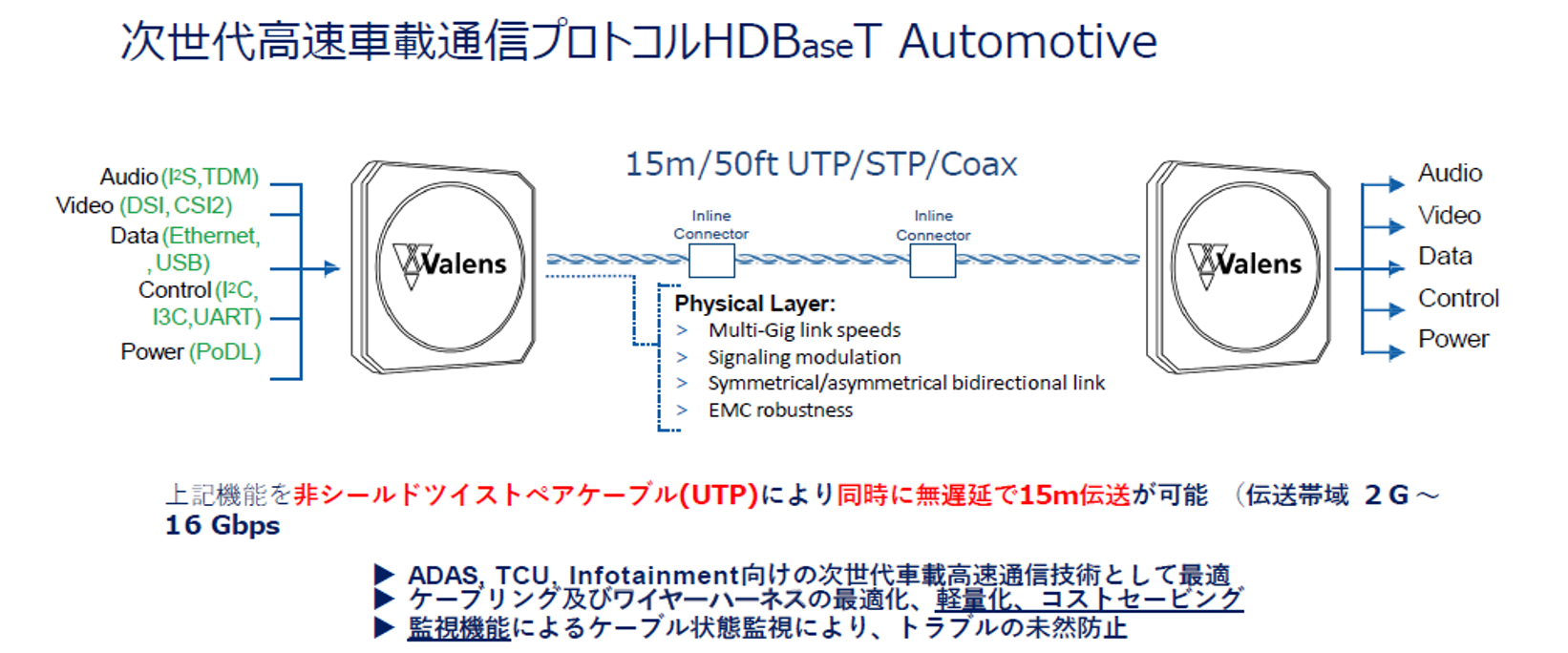

HDBaseT Products
VA6000 Series
- GBE, USB, I2C Signals
- Bandwidth: 2Gbps
- Transmission Distance: 15m (UTP Cable)
Mipi-A-PHY Compliant Products
VA7000 Series
- Mipi Alliance Aphy Compliant Chip
- CSI-2, I2C, GPIO, Frame Sync, Clock Signals
- Bandwidth: 2 to 8Gbps
- Transmission Distance: 15m
VA7031 CSI-2 Transmitter Chip
VA7044 CSI-2 Receiver Chip (4 channels)
VA7042 CSI-2 Receiver Chip (2 channels)
