High-Performance NVMe-oF Compatible JBOF Shared Storage Achieving High Speed and Flexible Scalability

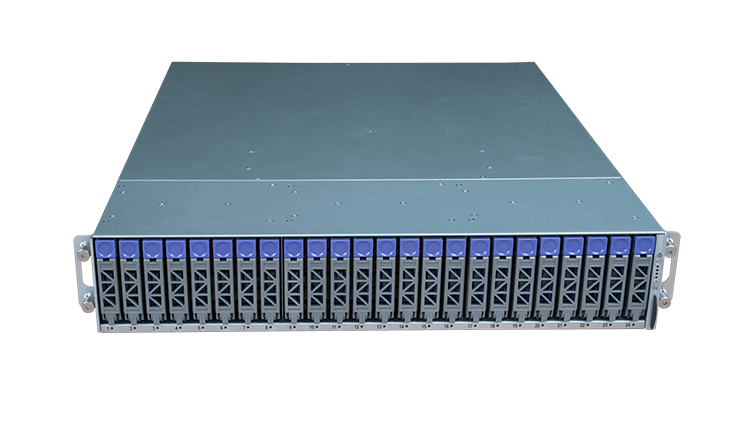

The OpenFlex™ Data24 4000 Series is an NVMe-oF compatible shared storage solution (EBOF: Ethernet Bunch of Flash) capable of housing up to 24 NVMe SSDs in a 2U chassis.
Equipped with the proprietary "RapidFlex™" controller, it delivers a flexible storage infrastructure that enables multiple hosts to share NVMe SSDs at high speed and low latency over Ethernet.
High-Performance NVMe Shared Configuration
Proprietary NVMe-oF Controller
Flexible Connectivity Options
High Scalability and Expandability
From AI, HPC, and SaaS infrastructure to high-speed storage for GPU servers, it can be flexibly utilized in combination with distributed storage software.
Compute and storage can be scaled out independently.
| Item | Details |
| Size | 2U Rack-Mount / 24-Bay (U.2 NVMe) |
| Number of Drives | Up to 24 drives (up to 61.44TB per drive, approximately 1.46PB total) |
| Maximum Capacity | Approximately 1.46PB (with 61.44TB SSD × 24 drives; depends on configuration) |
| Connection Interface | 100GbE × 6 / IOM (up to 12 ports), RoCE v2 / NVMe-over-TCP supported |
| Management | RESTful API |
| Controller | RapidFlex™ A2000 (NVMe-oF Target) |
| Supported SSDs | PCIe Gen4 / Gen5 compatible（refer to Compatibility Guide for details） |
| Power Supply | 800W, 100V compatible |
| Supported OS | RHEL 9.4、Ubuntu 24.04（refer to Compatibility Guide for details） |
