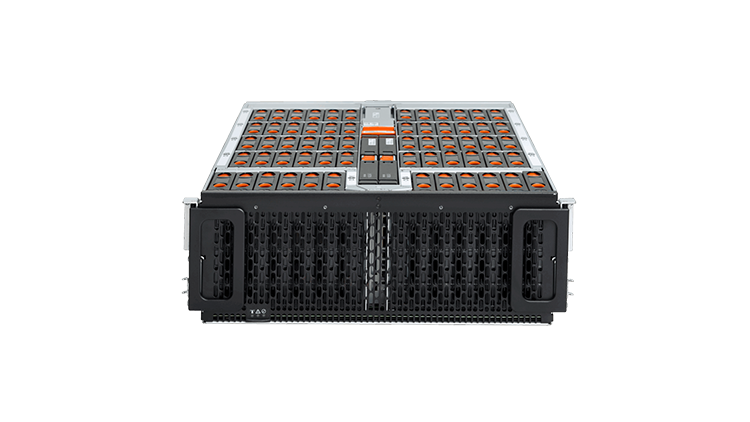

The Ultrastar® Data 60/102 is a storage enclosure capable of housing up to 60 or 102 high-density 3.5-inch HDDs and up to 24 SAS/SATA SSDs. With its proprietary vibration control technology and cooling mechanisms, it provides a high-capacity storage environment with excellent stability and reliability.
Main Features
Large Capacity Configuration
Data60: Accommodates up to 60 HDDs (up to 1.8PB)
Data102: Accommodates up to 102 HDDs (up to 3.06PB)
Superior Cooling and Vibration Resistance Technology
IsoVibe™: Stabilizes HDD performance through vibration control
ArcticFlow™: Extends HDD lifespan through optimized airflow
Flexible Connectivity Configuration
Supports single-path / multi-path / HA cluster configurations
Mini-SAS HD ports ×12 (6 ports × 2 IOM)
High Operability and Maintainability
Hot-swap support (HDD, power supply, IOM)
Accessible while mounted in rack
How to use
By utilizing JBOD, you can build a PB-class large-capacity storage infrastructure at a very low cost.
Install a RAID card or HBA in the PCIe slot of a general-purpose server and connect it using a Mini-SAS HD (included with Data60/102) cable
Combined with Software-Defined Storage (SDS), you can build storage tailored to your company's needs at a low cost.
Please use Broadcom (formerly LSI) genuine cards for RAID/HBA cards
For RAID card compatibility, please check the manufacturer's compatibility list
For servers, we have proven track records with DELL, HPE, and SMC products
We can also provide package solutions that include servers and SDS
Use case
It is deployed in a wide range of applications, from large-scale cloud storage infrastructure to laboratory file servers.
Cloud service storage infrastructure (Japan) Built and operated in-house
Research institution file server for machine learning (Japan) Using Data102. Operated in a 2-unit configuration with RAID6 (using 17 HDDs), featuring an LSI 9380 by LSI installed in a DELL server
Major cloud service providers Utilized as storage infrastructure for their own cloud services
Acronis (Europe) Used as storage infrastructure for their own cloud services
E-commerce site storage infrastructure (India) Using Ceph for SDS. Operated as a multi-petabyte storage infrastructure with 6 servers connected to a single Data60
Archive server for large-capacity data such as high-definition images, videos, and medical data
Archive server for large-capacity data such as high-definition images, videos, and medical data
