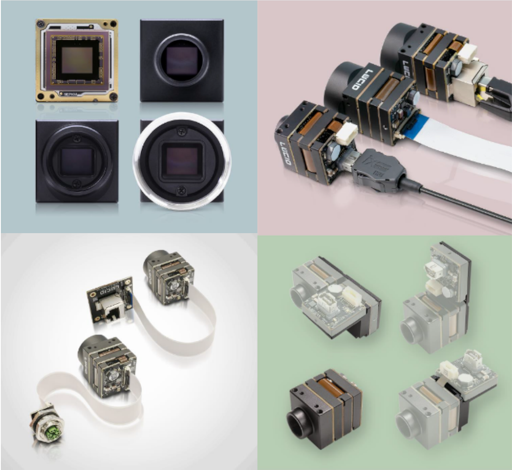

The Phoenix and its optional accessories support a wide variety of embedded environments.
*You can swipe left and right on the table below.
| Model Name | Pixel Count | Resolution | Frame Rate |
Sensor (CMOS) |
Sensor Size |
Shutter | Monochrome/Color | Lens Mount |
Interface |
|---|---|---|---|---|---|---|---|---|---|
| PHX200 | 20MP | 5472 x 3648 | 5.6fps | SONY IMX183 | 1" | Rolling | Monochrome/Color | C / Global No flange lens mount |
RJ45 / ix / FFC |
| PHX124S | 12.3MP | 4096 x 3000 | 9.0fps | Sony IMX565 | 1/1.1" | Rolling | Monochrome/Color | C / Global No flange lens mount |
RJ45 / ix / FFC |
| PHX120S | 12.3Mp | 4096 x 3000 | 9.0fps | Sony IMX304 | 1/1.1" | Global | Monochrome/Color | C / Global No flange lens mount |
RJ45 / ix / FFC |
| PHX089S | 8.9MP | 4096 x 2160 | 12.5fps | Sony IMX267 | 1" | Global | Monochrome/Color | C / Global No flange lens mount |
RJ45 / ix / FFC |
| PHX081S | 8.1MP | 2840 x 2840 | 13.8fps | Sony IMX566 | 2/3" | Global | Monochrome/Color | C / Global No flange lens mount |
RJ45 / ix / FFC |
| Model Name | Pixel Count | Resolution | Frame Rate |
Sensor (CMOS) |
Sensor Size |
Shutter | Monochrome/Color | Lens Mount |
Interface |
|---|---|---|---|---|---|---|---|---|---|
| PHX122S | 12MP | 4024 x 3036 | 9.1fps | Sony IMX226 | 1/1.7" | Rolling | Monochrome/Color | C / Remote Sensor(C) No Lens Mount |
RJ45 / ix / FFC |
| PHX064S | 6.3MP | 3072 x 2048 | 17.7fps | Sony IMX178 | 1/1.8" | Rolling | Monochrome/Color | C / Remote Sensor(C) / NF / S / No Lens Mount | RJ45 / ix / FFC |
| PHX050S1-P/Q | 5.0Mp | 2448 x 2048 | 22.0fps | Sony IMX264MZR /MX264MYR |
2/3" | Global | Monochrome/Color | C / Remote Sensor(C) / NF / S / No Lens Mount | RJ45 / ix / FFC |
| PHX050S-P/Q | 5.0Mp | 2448 x 2048 | 22.0fps | Sony IMX250MZR /MX250MYR |
2/3" | Global | Monochrome/Color | C / Remote Sensor(C) / NF / S / No Lens Mount | RJ45 / ix / FFC |
| PHX051S | 5.0Mp | 2448 x 2048 | 22.0fps | Sony IMX568 | 1/1.8" | Global | Monochrome/Color | C / Remote Sensor(C) / NF / S / No Lens Mount | RJ45 / ix / FFC |
| PHX050S | 5.0Mp | 2448 x 2048 | 22.0fps | Sony IMX264 | 2/3" | Global | Monochrome/Color | C / Remote Sensor(C) / NF / S / No Lens Mount | RJ45 / ix / FFC |
| PHX032S | 3.2MP | 2048 x 1536 | 35.4fps | Sony IMX265 | 1/1.8" | Global | Monochrome/Color | C / Remote Sensor(C) / NF / S / No Lens Mount | RJ45 / ix / FFC |
| PHX023S | 2.3Mp | 1920 x 1200 | 48.3fps | Sony IMX392 | 1/2.3" | Global | Monochrome/Color | C / Remote Sensor(C) / NF / S / No Lens Mount | RJ45 / ix / FFC |
| PHX016S | 1.6MP | 1440 x 1080 | 71.6fps | Sony IMX273 | 1/2.9" | Global | Monochrome/Color | C / Remote Sensor(C) / NF / S / No Lens Mount | RJ45 / ix / FFC |
| PHX004S | 0.4MP | 728 x 544 | 286fps | Sony IMX287 | 1/2.9" | Global | Monochrome/Color | C / Remote Sensor(C) / NF / S / No Lens Mount | RJ45 / ix / FFC |
| Model Name | Pixel Count | Resolution | Frame Rate |
Sensor (CMOS) |
Sensor Size |
Shutter | Monochrome/Color | Lens Mount |
Interface |
|---|---|---|---|---|---|---|---|---|---|

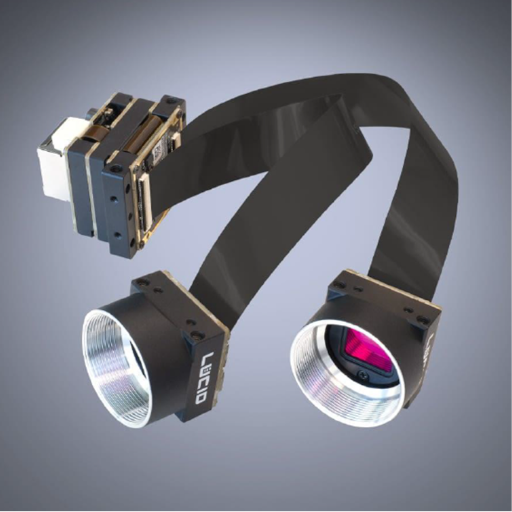

| PDH050S | 5.0MPx2 | 2840 x 2840 | 11fps (各Sensor） |
Sony IMX264 (x2) | 2/3″ | Global | Monochrome/Color | C | RJ45 / ix / FFC |
| Effective Sensor Pixels | 2,448 x 2,048 |
| Pixel Size | 3.45μm |
| Frame Rate | 11fps@5.0MP |
| Weight | 54g |
| Interface | 1000BASE-T,RJ45,PoE |
| Power Consumption | 3.1W (PoE), 2.5W (external power supply) |
| Readout Mode | ROI, Horizontal/Vertical Flip |
| ADC | 12bit |
| Gain | 0 dB to 48 dB Analog/Digital |
